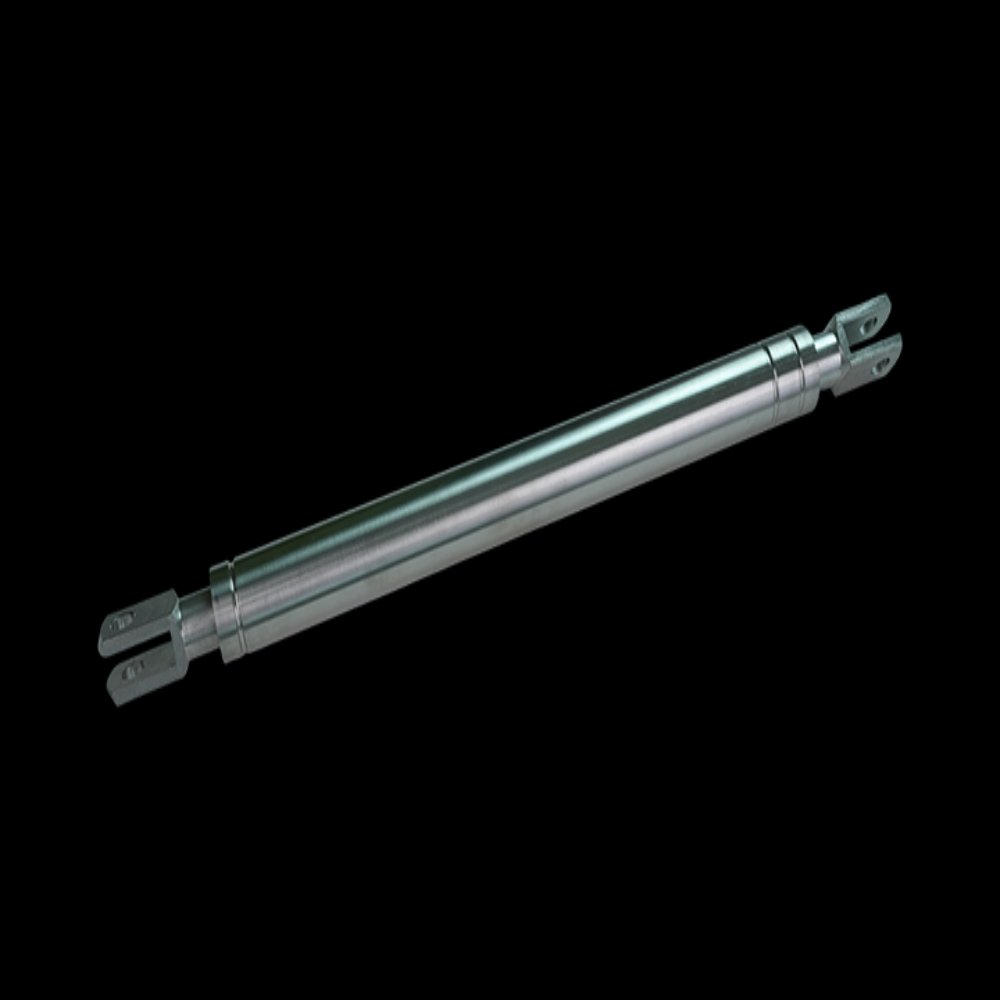

Contrary to compression gas springs, tension gas springs stay retracted under natural state. After pulling out the piston rod by external force and removing the force, the piston rod will retract automatically. The cylinder is painted, and the piston rod is treated with hard chrome plating or QPQ.
Structural feature: Reverse retractable gas spring with built-in damping buffer structure, low-noise operation in the whole stroke
Surface craft: 20# precision steel cylinder with black or silver plastic spraying, customer customization available; piston rod optional with chrome plating or QPQ process
Tension range: Customizable tension from 50N to 1000N
Stroke range: Customizable 50mm-500mm
Connecting joints: Ball joint, U-joint, flat joint, etc.
Operating temperature: -20℃ to 80℃
