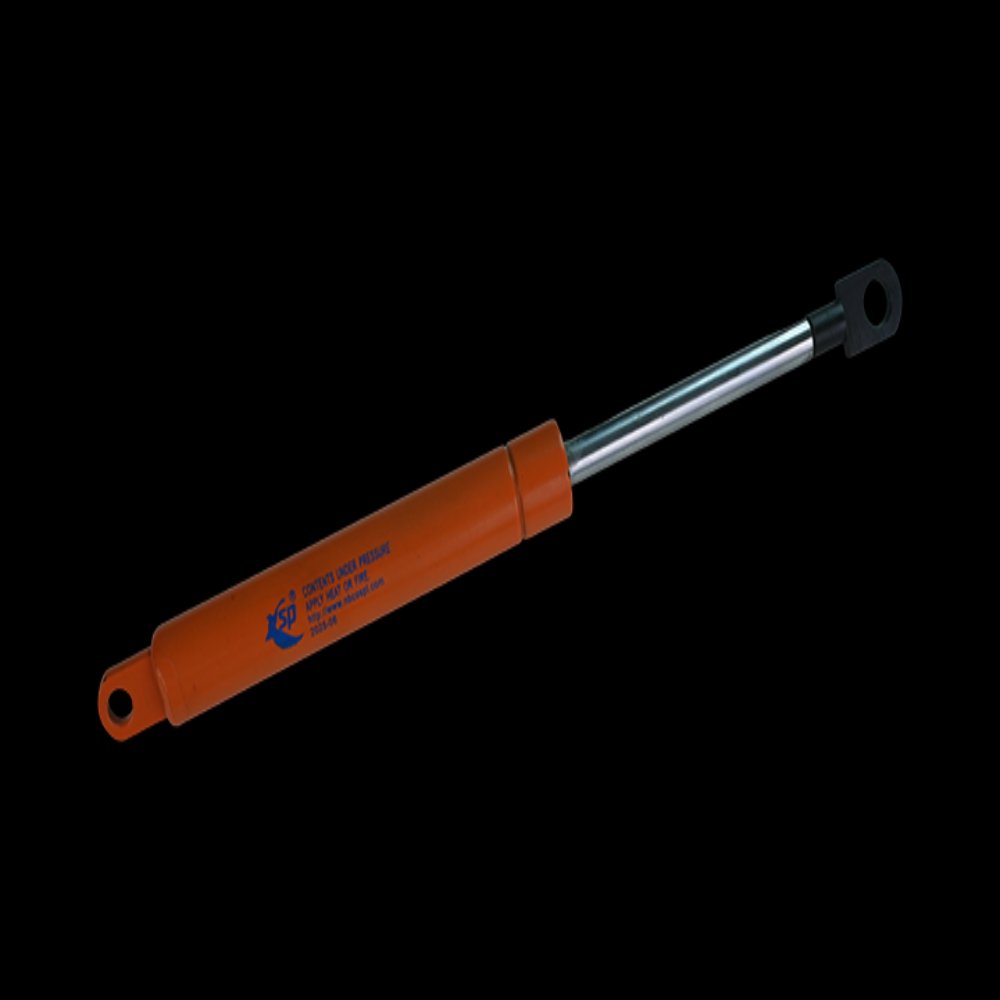

A gas spring is an elastic component composed of a sealed cylinder, sliding piston and piston rod assembly inside the cylinder, which takes nitrogen or other inert gas as energy storage medium. It performs functions including support, buffering, braking, height adjustment and angle adjustment. Widely used in medical equipment, automobiles, cabinet furniture, textile machinery, processing industry and other fields. The cylinder is painted, and the piston rod is treated with hard chrome plating or QPQ.
Material: 20# precision steel tube for cylinder, solid piston rod with chrome plating/QPQ treatment
Surface treatment: Black or silver plastic spraying for cylinder (customization available upon customer request)
Pressure range: Customizable from 50N to 2000N
Standard stroke: 50mm-400mm
End connectors: Ball joint, U-joint, flat joint, threaded joint, etc.
Working medium: High-purity nitrogen + hydraulic damping oil
Operating temperature: -20℃ to 80℃
